Universal Testing Machines

Description

AUTOGRAPH Precision Universal Tester
AGX™-V Series
Industry’s highest level of new precision universal testing machine

A motor-driven precision universal testing machine with high performance, operability and safety. By expanding the guaranteed precision range to 1/2000 of full scale, a wide range of test forces can be measured with a single load cell. The autotuning function was further enhanced and strain control performance was improved. By registering the jig space using the new intelligent crosshead function, jig space can be changed via a smart controller or dedicated software, which prevents collisions between the jigs due to operating errors.



Aggregation of Cutting-Edge Functions

The sampling speed has been improved to 10 kHz, which is twice as fast as the conventional product, enabling the test force to be collected 10,000 times per second. For tests using the strain control method specified in ISO 6892, the control cycle was increased by 10 times to improve responsiveness.



True Safety for Both the Operator and the Machine

A new self-diagnostic function to check the status of equipment has been introduced. The device automatically records the usage time and operation log, and automatically notifies you when parts need to be replaced. In addition, a variety of functions are included as standard, including a function to prevent collisions between jigs due to misoperation.



Operability that Takes the Shortest Path to Results

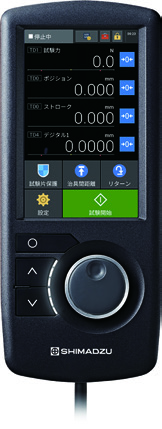

The controller is equipped with a touch panel LCD, which displays the optimal buttons and information for the situation. It shows a variety of operations and informational displays, including jig space adjustments prior to testing and confirmation of measurement values during tests. A universal interface standardized with the software has been adopted to support all kinds of testing by high operability and visibility.







AUTOGRAPH Table-Top Precision Universal Tester

AGS-X Series

Combining all necessary functions in a compact design, this high-performance, cost-efficient testing machine has been developed for low-capacity strength evaluations. Increase testing efficiency using dedicated data processing software (TRAPEZIUM LITE X).









Micro AUTOGRAPH

MST-I

Utilize the MST-I to evaluate the strength of small test samples such as electronic parts, micro-devices and fine wire. A high-precision drive system and measurement system allows very small test forces and displacements to be measured and controlled, enabling various types of data to be obtained. An X-Y stage and a microscope are provided to enable easy positioning and observation of the sample.











Compact Tabletop Tester

EZ-X Series

This easy-to-use, compact, stylish frame incorporates enhanced functions, enabling tests to be carried out with good efficiency.













Fully Automatic Rubber Tensile Testing System

This is a fully automatic tensile and bending tester for plastics. It is capable of continuous operation from measurement of specimen dimensions, supply, and data processing.















Fully Automatic Metal Tensile Testing System

This system provides full automation, from measurement of specimen dimensions, supply to the testing machine, and fixing of chucks to measurement of extension between standard lines and data processing. The system can be used for continuous nighttime testing, which helps save labor costs.









Concrete Compression Testing Machine

CCH-X/CCM-X Series

In recent years the importance of concrete quality control has increased. This testing machine can carry out concrete compression tests efficiently in accordance with JIS A 1108. With options it can also be used for concrete bending tests and concrete tensile tests.









Concrete Compression Testing Machine

CONCRETO 2000X/3000X

This compression testing machine can safely and efficiently perform tests at a high capacity without causing explosive fracture (failure of the specimen) on ultra-high-strength concrete, which is used as a structural material in high-rise buildings, etc. This one machine can be used for materials ranging from ultra-highstrength concrete to specimens that have been recently cast, mortar, etc.
